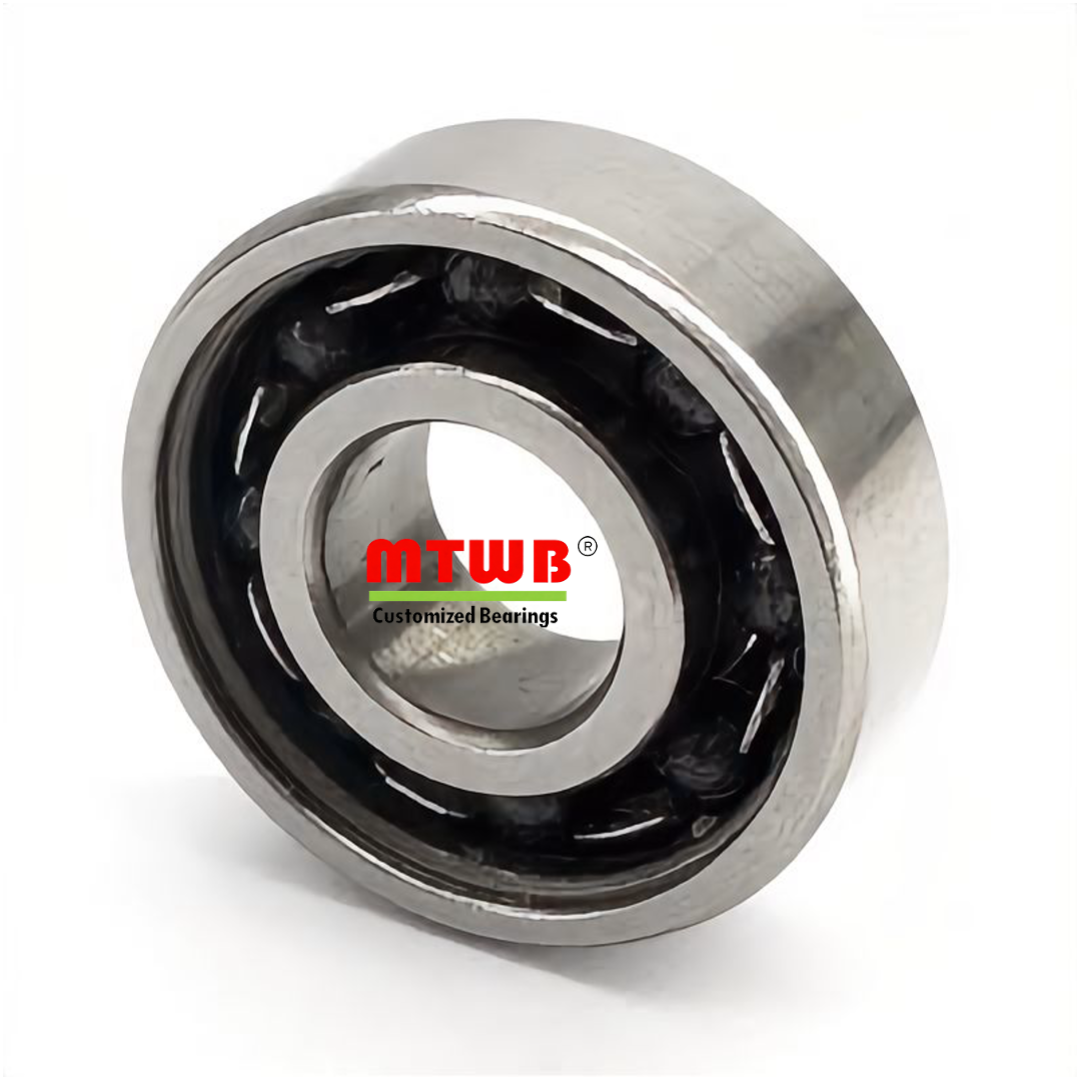

The 606 Low Noise EMQ Bearing is a precision-engineered miniature deep groove ball bearing (DGBB) designed for applications demanding exceptional acoustic performance, high rotational accuracy, and reliable long-term operation. Manufactured under MTWB’s rigorous quality control framework, this bearing represents a significant technical breakthrough in low-noise bearing technology for electric motors and precision equipment.
With a compact 6mm inner diameter, 17mm outer diameter, and 6mm width, the 606 Low Noise EMQ Bearing delivers an outstanding size-to-performance ratio, making it the ideal choice for space-constrained, high-speed, and noise-sensitive applications.
| Internal Clearance | C0 (standard) |
Bearings are the critical components of electric motors, and the key to low-noise operation lies in vibration reduction. MTWB implements targeted quality control during the inner ring raceway grinding process, which plays a vital role in minimizing noise. Our high-precision machines and advanced techniques refine every aspect of the bearing – from the raceways to the balls – ensuring they exceed industry standards.
Every 606 Low Noise EQM Bearing undergoes 100% sealing effect inspection before leaving the factory. This rigorous process reduces the risk of dust and debris entering the bearing interior due to inadequate sealing, which could otherwise lead to reduced efficiency over long-term use.
Only the finest materials are selected, including G95Cr18 and GCr15 bearing steels, plus corrosion-resistant 300-series stainless steel. These top-grade materials ensure strength, durability, and whisper-quiet operation for the long haul.
Leveraging advanced production technology and strict quality control, MTWB miniature DGBB bearings deliver outstanding rotational accuracy, long service life, and reliable performance.
Fully compliant with ISO standard dimensions, ensuring seamless integration with existing equipment and easy replacement.
MTWB bearings are typically lubricated with antirust oil for open bearings or lithium-based grease for sealed bearings. Specified grease can also be applied according to customer requirements.
The 606 Low Noise EMQ Bearing is engineered for high-speed, low-noise, and space-constrained applications across multiple industries:
Precision Electric Motors – Ideal for small motor applications where low vibration and quiet operation are essential.
Medical Devices – Originally driven by medical applications, MTWB’s precision bearing technology extends to surgical instruments, dental handpieces, and diagnostic equipment.
Robotics & Automation – Precision motors, servo systems, and robotic actuators.
Consumer Electronics – Hard disk drives (HDD), cooling fans, VCR capstans, drum spindles, and servo encoders.
Measuring Instruments – Precision measurement and testing equipment
Office Machines – Printers, copiers, and other office automation equipment
Home Appliances – Quiet-operation appliances requiring low-noise bearings
Industrial Automation Equipment – High-speed rotating machinery and precision instruments
While both miniature bearings and power hand tool bearings serve rotating applications, the 606 Low Noise EMQ Bearing distinguishes itself in several critical ways:
General EMQ or standard grades:
| Application Environment | Clean, controlled environments (electronics, medical, precision instruments) |
Harsh environments with exposure to debris, moisture, and impact:
| Speed Capability | Optimized for high-speed operation up to 49,000 RPM |
Typically operates at lower speeds, though some reach 60,000 RPM
| Precision Level | High rotational accuracy with super-finished raceways |
| Standard precision; focus on ruggedness over ultra-precision | |
| Lubrication | Lifetime lubrication with specialized low-noise grease |
Lifetime lubrication with focus on temperature resistance
| Sealing | Precision seals with 100% sealing inspection |
Robust seals/shields for contamination protection
| Primary Industries | Medical, robotics, electronics, precision instruments |
Construction, automotive repair, woodworking, general industrialKey Distinction: Power hand tool bearings are engineered for ruggedness and contamination resistance in demanding physical environments. In contrast, the 606 Low Noise EMQ Bearing is optimized for acoustic performance and rotational precision in clean, controlled applications where noise levels directly impact product quality and user experience.
Related low noise EMQ Bearing
606 bearing, 606 bearing, 626 bearing, 627 bearing, 634 bearing, 635 bearing, 6001 bearing ,6202 bearing,
62202 bearing, 62203 bearing, LV20/7 Bearing, LV20/8 Bearing, SG20 Bearing, SG25 Bearing ,SR620 Bearing,SR824 Bearing, SR1028 Bearing, SR1232 Bearing
MTWB has achieved significant technical breakthroughs in miniature and small deep groove ball bearing manufacturing, providing precision bearing solutions for high-speed, low-noise, and space-constrained applications worldwide.
MTWB doesn’t just claim bearings are “quiet” – we guarantee it. Through rigorous testing and evaluation procedures including noise testers and vibration testers, every batch of bearings meets the criteria for low noise and high efficiency.
The noise detection of bearings is systematically classified into Z1, Z2, Z3, and Z4 levels, while vibration detection levels are classified as V1, V2, V3, and V4. Motor bearings have stricter requirements for bearing vibrations, and customers can choose different levels based on specific application needs.
With 51 active patents (10 of which are product innovations) and over 30 years of accumulated bearing experience across aviation, automotive, medical, metallurgy, robotics, and industrial automation, MTWB brings unparalleled expertise to every bearing manufactured.
Beyond standard specifications, MTWB offers complete customization services – from design and technical drawing through sample making to mass production. Our experienced engineers and sourcing team provide complete technical support from sample design to mass production, making MTWB an ideal OEM bearing partner for international brands.
Industry-Leading Low Noise – EMQ grade with guaranteed acoustic performance
100% Quality Inspection – Every bearing tested before shipment
Superior Materials – Premium steel grades for durability and quiet operation
Precision Manufacturing – Advanced grinding and quality control processes
Versatile Applications – Ideal for medical, robotics, electronics, and automation
Customization Available – Tailored solutions for OEM requirements
Proven Technical Expertise – 51 patents and decades of industry experience
