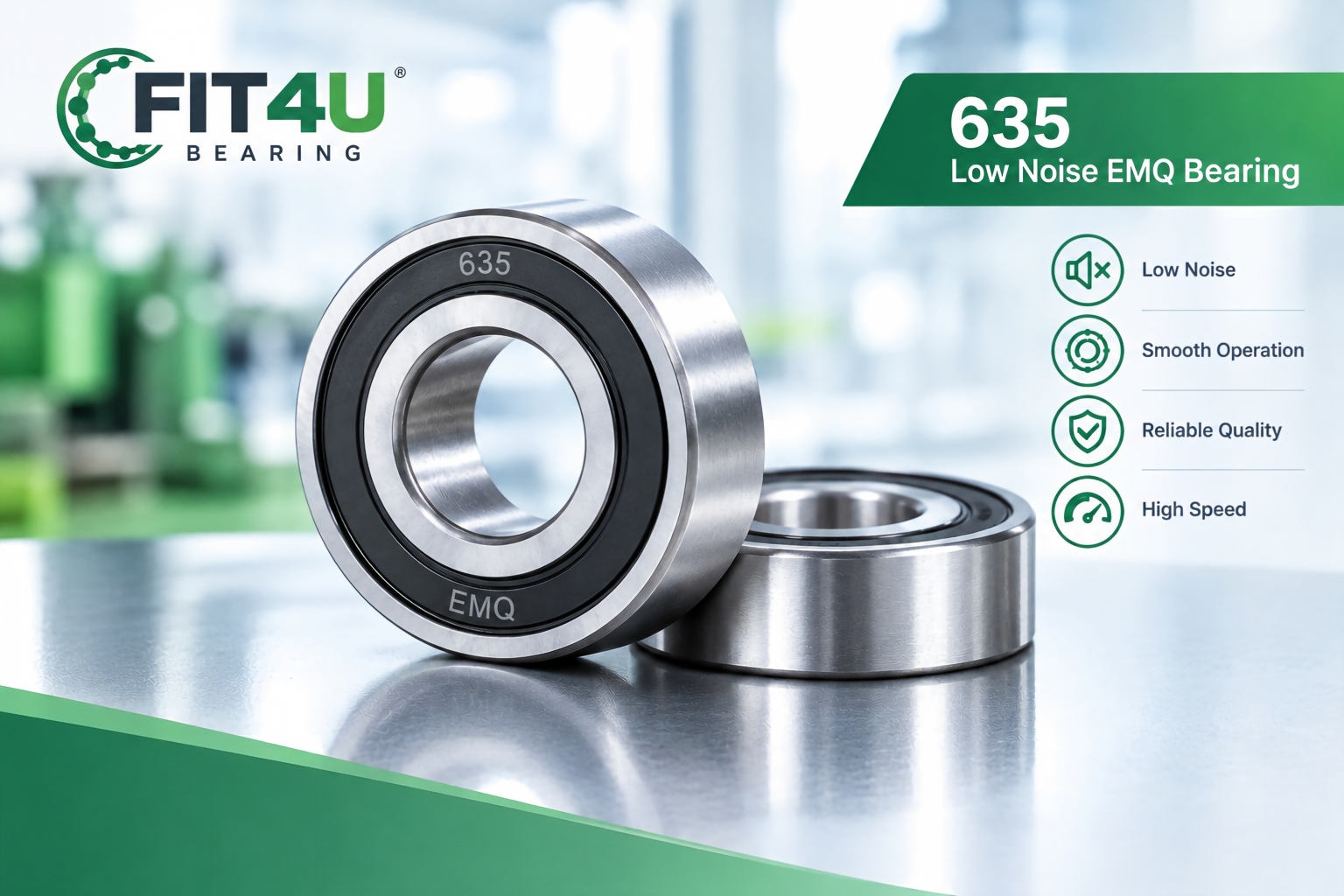

635 bearing dimensions: 5 mm bore × 19 mm outside diameter × 6 mm width (5x19x6 mm)
The 635 Low Noise EMQ Bearing is a precision-engineered miniature deep groove ball bearing designed for applications where silence, precision, and reliability are non-negotiable. Manufactured to Electric Motor Quality (EMQ) standards, this bearing delivers exceptionally low noise and vibration levels while maintaining high rotational accuracy and extended service life.
MTWB has achieved significant technical breakthroughs in miniature and small deep groove ball bearing manufacturing, providing precision bearing solutions for high-speed, low-noise and space-constrained applications. Leveraging advanced production technology, precision grinding, and strict quality control, MTWB miniature DGBB bearings deliver outstanding rotational accuracy, long service life and reliable performance.
1. EMQ-Grade Low Noise Performance
The 635 Low Noise EMQ Bearing is manufactured with superfinished rolling contact surfaces to a mirror-like finish, providing exceptionally smooth rotation. By implementing targeted quality control during the grinding process of the inner ring raceway, MTWB significantly reduces bearing noise. High-precision machines and top-notch techniques refine every aspect of the bearing – from the raceways to the balls – ensuring they exceed industry standards.
2. Rigorous Noise & Vibration Testing
MTWB conducts 100% inspection on every bearing before it leaves the factory. Noise detection is classified into Z1, Z2, Z3, and Z4 levels, while vibration detection is classified as V1, V2, V3, and V4. Customers can choose different levels based on specific requirements. Through these rigorous testing and evaluation procedures, MTWBguarantees that every batch of bearings meets the criteria for low noise and high efficiency.
3. Premium Material Selection
MTWB chooses only the finest materials, including G95Cr18 and GCr15 bearing steels, plus corrosion-resistant 300-series stainless steel. These top-grade materials ensure your bearings are strong, durable, and whisper-quiet, ready to perform flawlessly for the long haul.
4. Optimized Lubrication
MTWB bearings are typically lubricated with anti-rust oil for open bearings or lithium-based grease for closed bearings. Specified grease can also be used according to customer requirements. MTWB recognizes that grease has become a major factor influencing bearing noise and selects lubricants accordingly.
5. Compact & Lightweight Design
With its miniature 5mm bore and 19mm outside diameter, the 635 bearing is ideal for space-constrained applications where every millimeter counts.
The 635 Low Noise EMQ Bearing is widely used across multiple industries:
●Medical Devices – Precision instruments, surgical tools, dental handpieces
●Robotics – Joint mechanisms, servo motors, actuators
●Precision Motors – Micro-motors, stepper motors, DC motors
●Instruments – Measurement equipment, optical devices
●Industrial Automation – Robotics, pick-and-place machines, conveyor systems
●Consumer Electronics – Hard disk drives, cooling fans, optical drives
●Power Tools – Electric motors, angle grinders, drills (low-noise variants)
●Automotive – Small motors, actuators, sensors
For other miniature low-noise applications, see our
6001 bearing ,6202 bearing,62202 bearing, 62203 bearing, LV20/7 Bearing, LV20/8 Bearing, SG20 Bearing, SG25 Bearing ,SR620 Bearing,SR824 Bearing, SR1028 Bearing, SR1232 Bearing
While both 635 EMQ bearings and standard power hand tool bearings share similar dimensional specifications, they serve fundamentally different purposes:
| Feature | 635 Low Noise EMQ Bearing | Standard Power Hand Tool Bearing |
|---|---|---|
| Primary Focus | Low noise, precision, smooth operation | Durability, impact resistance, load capacity |
| Noise Level | EMQ-rated (Z2–Z4) – ultra-quiet | Standard noise – higher operational sound |
| Surface Finish | Mirror-like superfinished raceways | Standard ground finish |
| Inspection | 100% noise and vibration testing | Limited or no noise testing |
| Application Environment | Noise-sensitive, precision-critical | Heavy-duty, high-impact, workshop environments |
| Lubrication | Precision low-noise grease | Standard industrial grease |
| Speed Capability | Optimized for high-speed, smooth rotation | Designed for variable speed with shock loads |
| Tolerance | ABEC 3 / P6 precision | Standard commercial tolerances |
The Critical Difference: Standard power hand tool bearings are engineered to withstand shock loads, impacts, and harsh workshop conditions. In contrast, the 635 Low Noise EMQ Bearing is precision-engineered for applications where operational silence and rotational smoothness are paramount – making it the superior choice for medical devices, precision instruments, robotics, and any application where noise reduction is a critical performance metric.
MTWB has achieved significant technical breakthroughs in miniature and small deep groove ball bearing manufacturing. With the capability to produce bearings from 0.6mm ID to 380mm OD at P4 precision class, MTWB is at the forefront of precision bearing technology.
MTWB's success in manufacturing the world's smallest ball bearing (0.6mm ID) was originally driven by medical applications – a testament to the company's commitment to extreme precision. This same precision engineering is applied to every 635 Low Noise EMQ Bearing.
MTWB offers design optimization services and "Zero-Error" production to ensure customer satisfaction. Customized internal dimensions, special raceway curvature designs, and optimized lubrication solutions are available to meet specific application requirements.
Quality Guarantee
MTWB doesn't just say bearings are "quiet" – they guarantee it. Every bearing undergoes 100% inspection before leaving the factory, ensuring consistent quality across every shipment.
What are the dimensions of a 635 bearing?
5 mm bore, 19 mm OD, 6 mm width (5×19×6 mm).
What is a 635 EMQ bearing?
A miniature deep groove ball bearing designed for low noise, low vibration, and smooth operation.
Is the 635 bearing available with ZZ or 2RS seals?
Yes. Available in open, ZZ metal-shielded, and 2RS rubber-sealed versions.
What are common applications for 635 low-noise bearings?
Miniature motors, robotics, medical and dental devices, precision instruments, actuators, and other compact quiet-operation equipment.
